There are three functions that can assign points (coordinates) to polygons:
- assign_points_terra is useful when each point could overlap with only polygon in a shapefile
- assign_points_secr is useful when each point could overlap with one or more polygons in a shapefile. It returns a presence absence data frame to indicate whether a point is inside a polygon. The last column in the data frame indicates all the polygons associated with each point.
- assign_points_to_nearest_polygon is useful when there are points that don’t overlap with any polygons, but you want to know which polygon a point is nearest to. This function uses the edges, rather than the centroids, of polygons.
The examples below assign fishing coordinates to DFO September research vessel survey strata and/or Marine Protected Areas.
Get a shapefile
Notice that the coordinate reference system (crs) is lon/lat NAD83 (EPSG:4269). When working with spatial data, your data should all have the same crs. If they don’t, you can re-project them (e.g., ?terra::project).
rv<-get_shapefile('rv.sgsl')
#> sGSL September RV Survey
# see information about the object
rv
#> class : SpatVector
#> geometry : polygons
#> dimensions : 27, 3 (geometries, attributes)
#> extent : -65.9368, -60.0779, 45.6756, 49.1769 (xmin, xmax, ymin, ymax)
#> coord. ref. : lon/lat NAD83 (EPSG:4269)
#> names : id area trawlable.
#> type : <int> <num> <num>
#> values : 401 1182 2.916e+04
#> 402 1553 3.832e+04
#> 403 388 9580

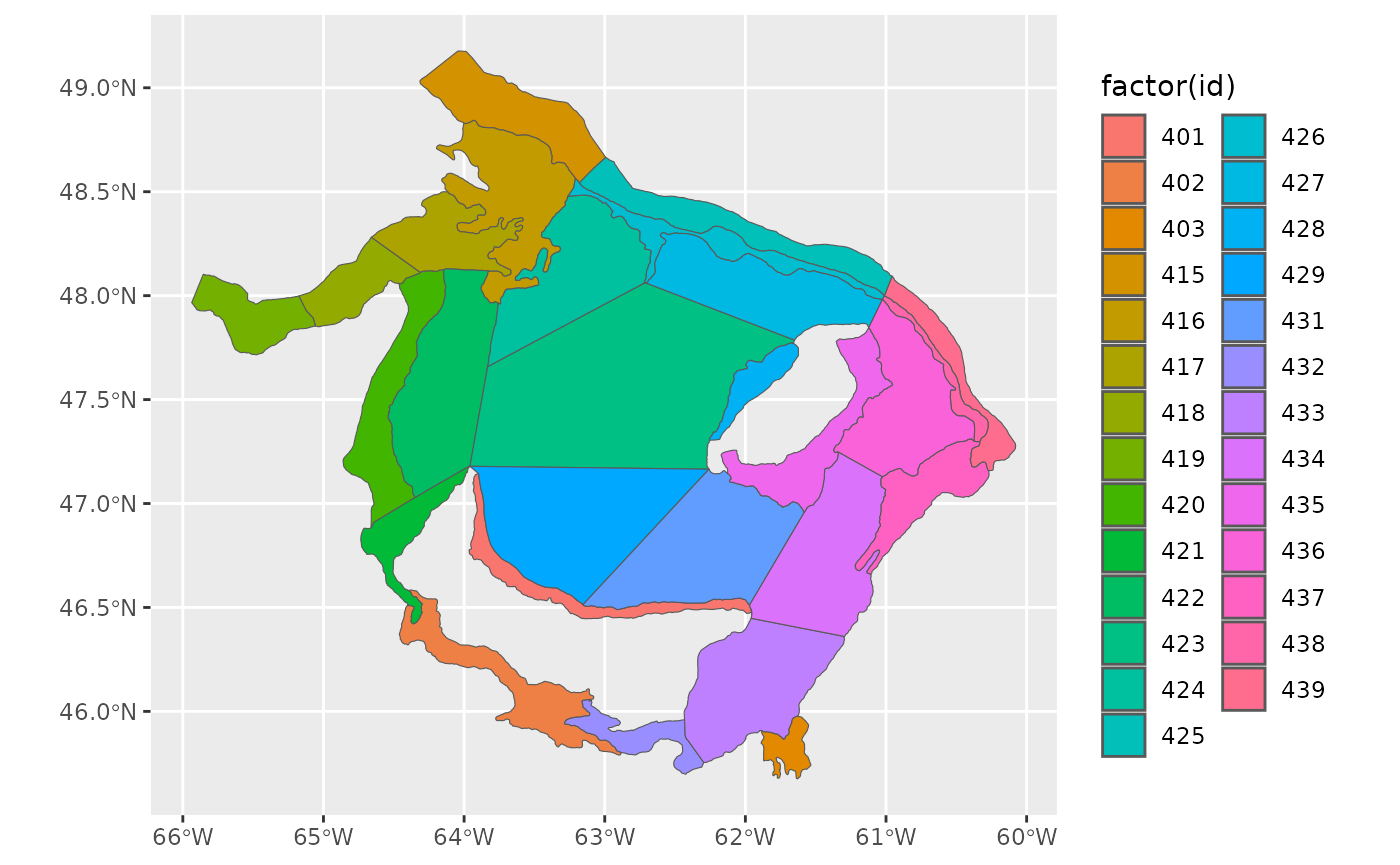

# plot it
ggplot()+
geom_spatvector(data=rv,aes(fill=factor(id)))
Get some data
This example uses commercial landings data that have longitude and latitude coordinates with the same crs as the shapefile.

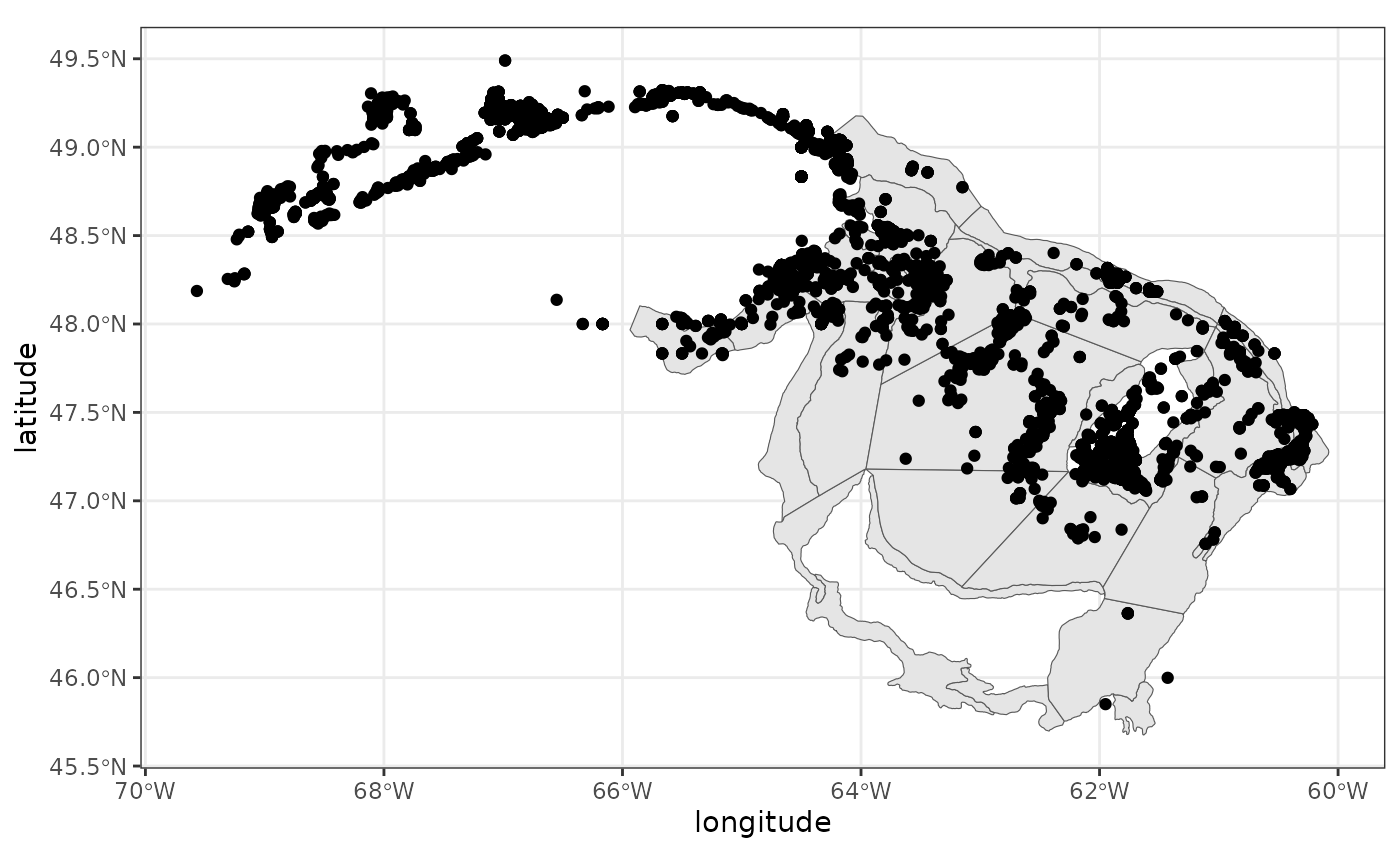

Plot everything
There are many points inside the polygons as well as outside the polygons
ggplot()+
geom_spatvector(data=rv)+
geom_point(data=df,aes(longitude,latitude))+
theme_bw()
Using function assign_points_terra
x<-assign_points_terra(df$longitude, df$latitude,rv)
#> Processing points 1 to 1000. 14:12:01
#> Processing points 1001 to 2000. 14:12:01
#> Processing points 2001 to 3000. 14:12:01
#> Processing points 3001 to 4000. 14:12:01
#> Processing points 4001 to 4559. 14:12:01
head(x)
#> x y assigned.polygon
#> 1 -60.4406 47.2421 437
#> 2 -60.4581 47.2281 437
#> 3 -60.4581 47.2281 437
#> 4 -60.3503 47.3175 438
#> 5 -60.3503 47.3175 438
#> 6 -60.3258 47.2961 439
stratum<-x[,3]
# combine
df1<-cbind(df,stratum)
head(df1)
#> longitude latitude stratum
#> 6546100 -60.4406 47.2421 437
#> 6547100 -60.4581 47.2281 437
#> 6548100 -60.4581 47.2281 437
#> 6549100 -60.3503 47.3175 438
#> 6550100 -60.3503 47.3175 438
#> 6551100 -60.3258 47.2961 439

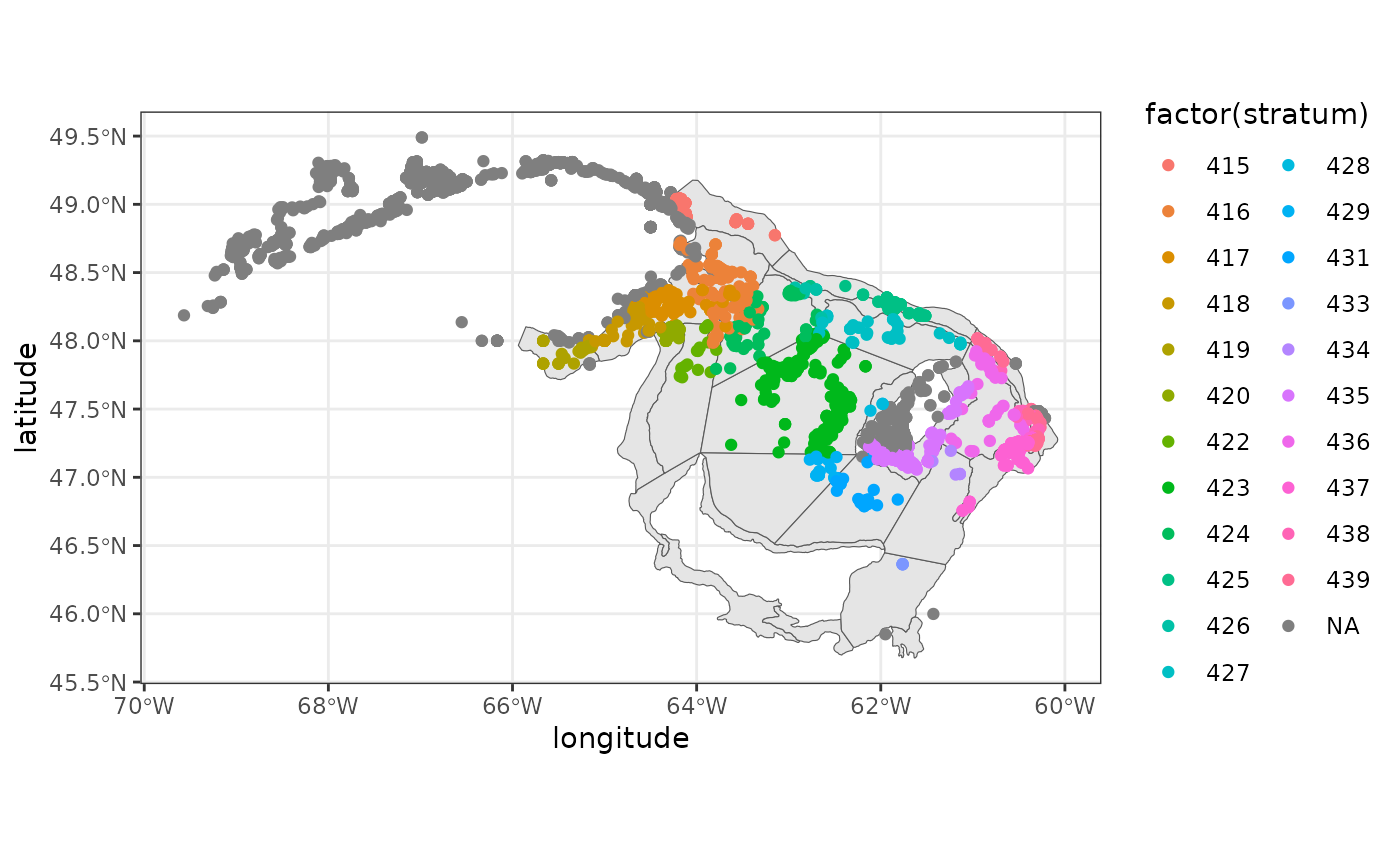

ggplot()+
geom_spatvector(data=rv)+
geom_point(data=df1,aes(longitude,latitude,col=factor(stratum)))+
theme_bw()
What if there are overlapping polyons? Use function
assign_points_secr
If there are overlapping polygons causing your data points to
‘belong’ to multiple polygons, you can use function
assign_points_secr
Start by getting another shapefile. This example uses Oceans Act Marine Protected Areas
mpa<-get_shapefile('mpa')
mpa
#> class : SpatVector
#> geometry : polygons
#> dimensions : 11, 12 (geometries, attributes)
#> extent : -64.14, -58.3667, 45.7833, 48.75004 (xmin, xmax, ymin, ymax)
#> coord. ref. : lon/lat NAD83 (EPSG:4269)
#> names : OBJECTID NAME_E NAME_F ZONE_E ZONE_F
#> type : <int> <chr> <chr> <chr> <chr>
#> values : 1 Basin Head Mar~ Zone de protec~ Zone 3 Zone 3
#> 2 Basin Head Mar~ Zone de protec~ Zone 1 Zone 1
#> 3 Basin Head Mar~ Zone de protec~ Zone 2 Zone 2
#> URL_E URL_F REGULATION REGLEMENT KM2
#> <chr> <chr> <chr> <chr> <num>
#> http://www.dfo~ http://www.dfo~ http://laws.ju~ http://laws.ju~ 8.64
#> http://www.dfo~ http://www.dfo~ http://laws.ju~ http://laws.ju~ 0.24
#> http://www.dfo~ http://www.dfo~ http://laws.ju~ http://laws.ju~ 0.35
#> Shape_Leng Shape_Area
#> <num> <num>
#> 1.519e+04 8.642e+06
#> 6510 2.416e+05
#> 5976 3.541e+05

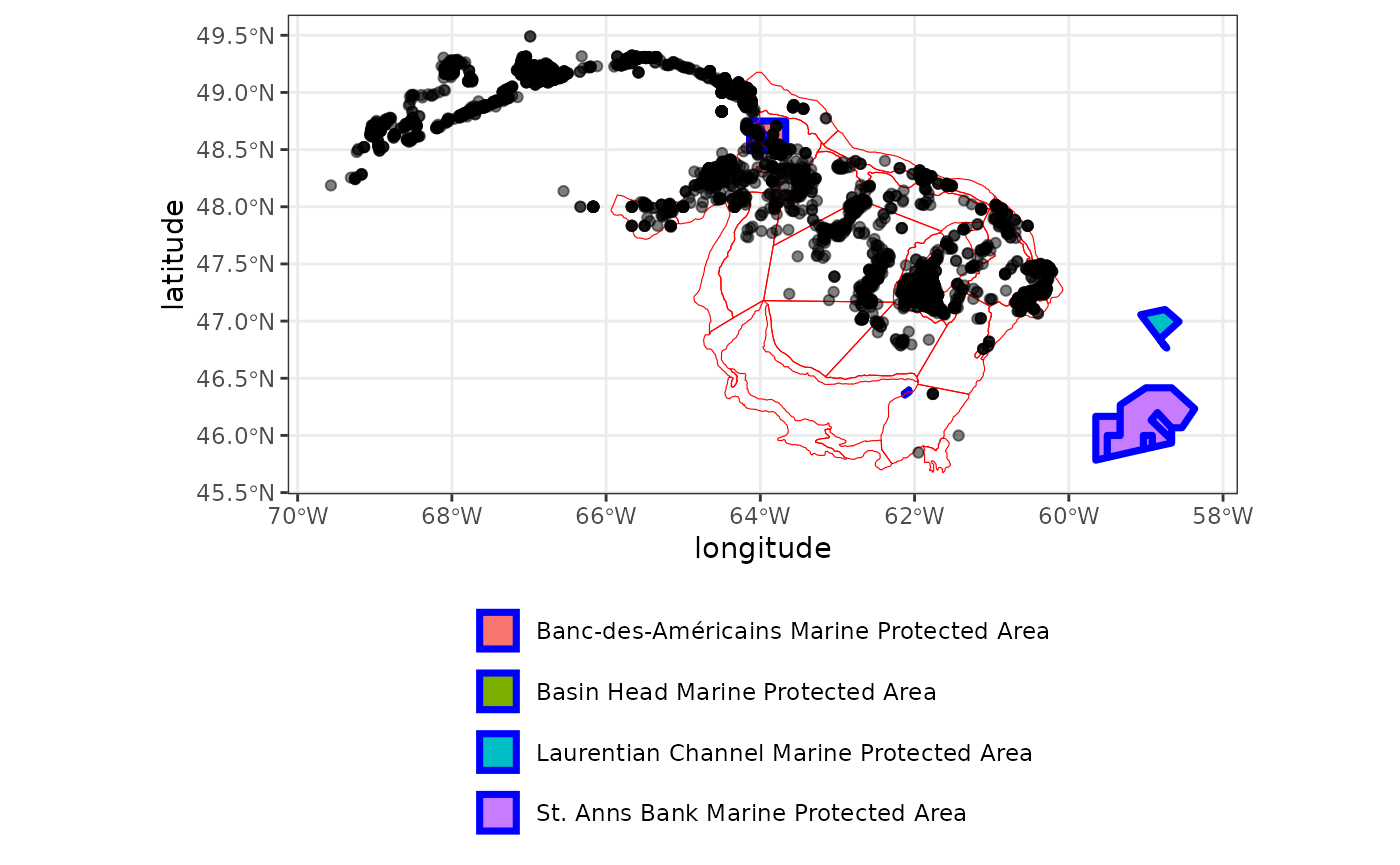

ggplot()+
geom_spatvector(data=mpa,aes(fill=factor(NAME_E)),col='blue',lwd=1.25)+
geom_spatvector(data=rv,fill=NA,col='red')+
geom_point(data=dat.ziff,aes(longitude,latitude),alpha=0.5)+
theme_bw()+
theme(legend.position="bottom",legend.title=element_blank())+
guides(fill=guide_legend(ncol=1,byrow=TRUE))
In order to demonstrate function assign_points_secr, we
will combine the two shapefiles as if they were originally a single
shapefile.
library('terra')
# first need to make names match
names(rv)
#> [1] "id" "area" "trawlable."
names(mpa)
#> [1] "OBJECTID" "NAME_E" "NAME_F" "ZONE_E" "ZONE_F"
#> [6] "URL_E" "URL_F" "REGULATION" "REGLEMENT" "KM2"
#> [11] "Shape_Leng" "Shape_Area"
rv$NAME<-as.character(rv$id)
mpa$NAME<-as.character(mpa$NAME_E)
shape<-rbind(rv,mpa)
shape<-shape[, c("NAME")]
shape
#> class : SpatVector
#> geometry : polygons
#> dimensions : 38, 1 (geometries, attributes)
#> extent : -65.9368, -58.3667, 45.6756, 49.1769 (xmin, xmax, ymin, ymax)
#> coord. ref. : lon/lat NAD83 (EPSG:4269)
#> names : NAME
#> type : <chr>
#> values : 401
#> 402
#> 403

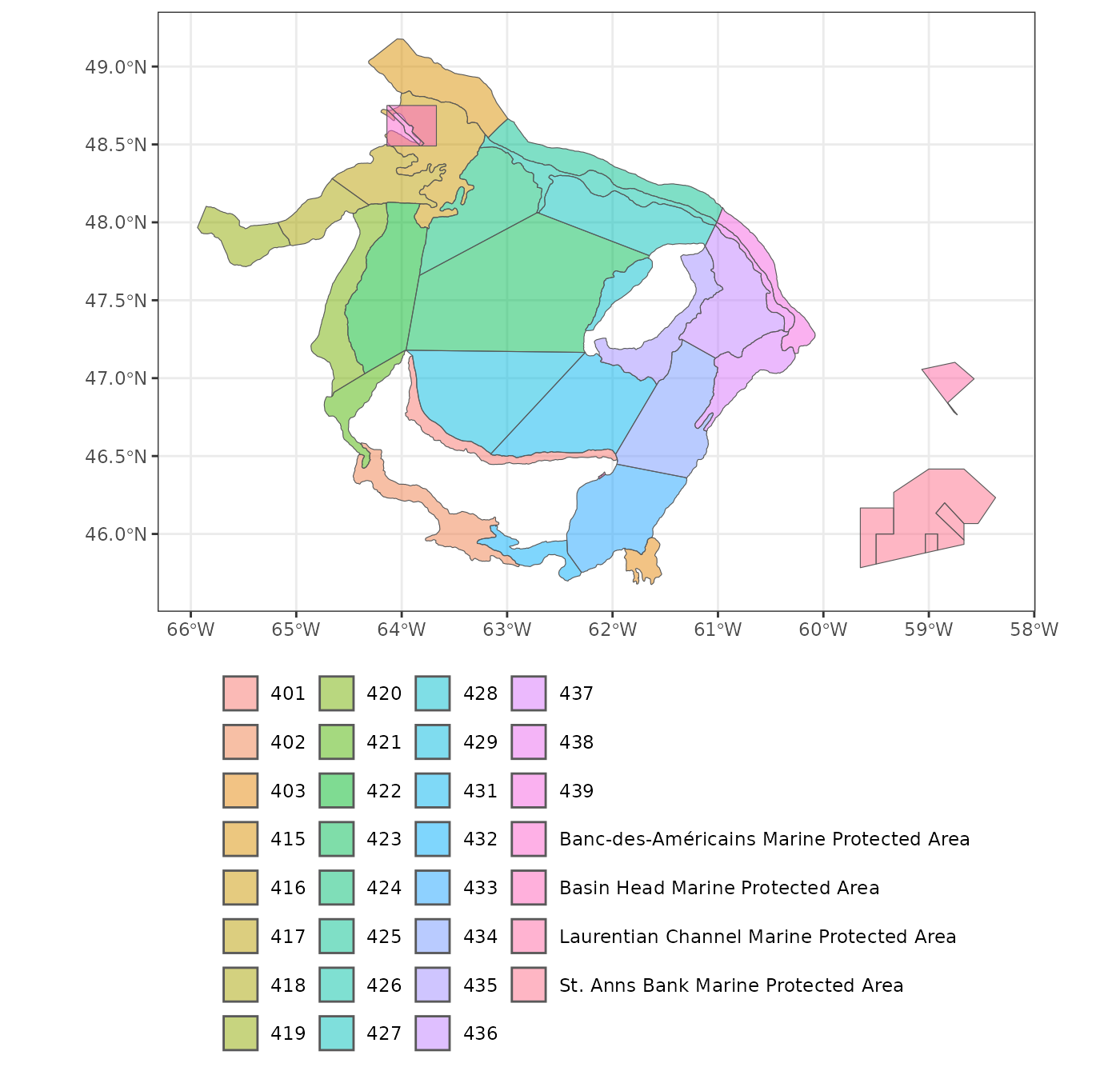

ggplot()+
geom_spatvector(data=shape,aes(fill=factor(NAME)),alpha=0.5)+
theme_bw()+
theme(legend.position="bottom",legend.title=element_blank())+
guides(fill=guide_legend(nrow=8))
Now use function assign_points_secr
x<-assign_points_secr(dat.ziff[,'longitude'],
dat.ziff[,'latitude'],
shape,"NAME")
#> Processing points 1 to 1000. 14:12:03
#> Processing points 1001 to 2000. 14:12:04
#> Processing points 2001 to 3000. 14:12:05
#> Processing points 3001 to 4000. 14:12:05
#> Processing points 4001 to 4559. 14:12:05
polygon<-x$assigned.polygon
df2<-cbind(dat.ziff,polygon)Using function table shows that 69 points fall within
the area in which stratum 416 overlaps with Banc-des-Américains Marine
Protected Area. All other assigned points belong to non-overlapping
polygon areas.
rbind(table(df2$polygon))
#> 415 416 416, Banc-des-Américains Marine Protected Area 417 418 419 420 422
#> [1,] 105 111 69 92 77 28 31 15
#> 423 424 425 426 427 428 429 431 433 434 435 436 437 438 439
#> [1,] 264 64 198 7 43 3 33 37 4 6 236 61 302 49 177
#> Banc-des-Américains Marine Protected Area
#> [1,] 15

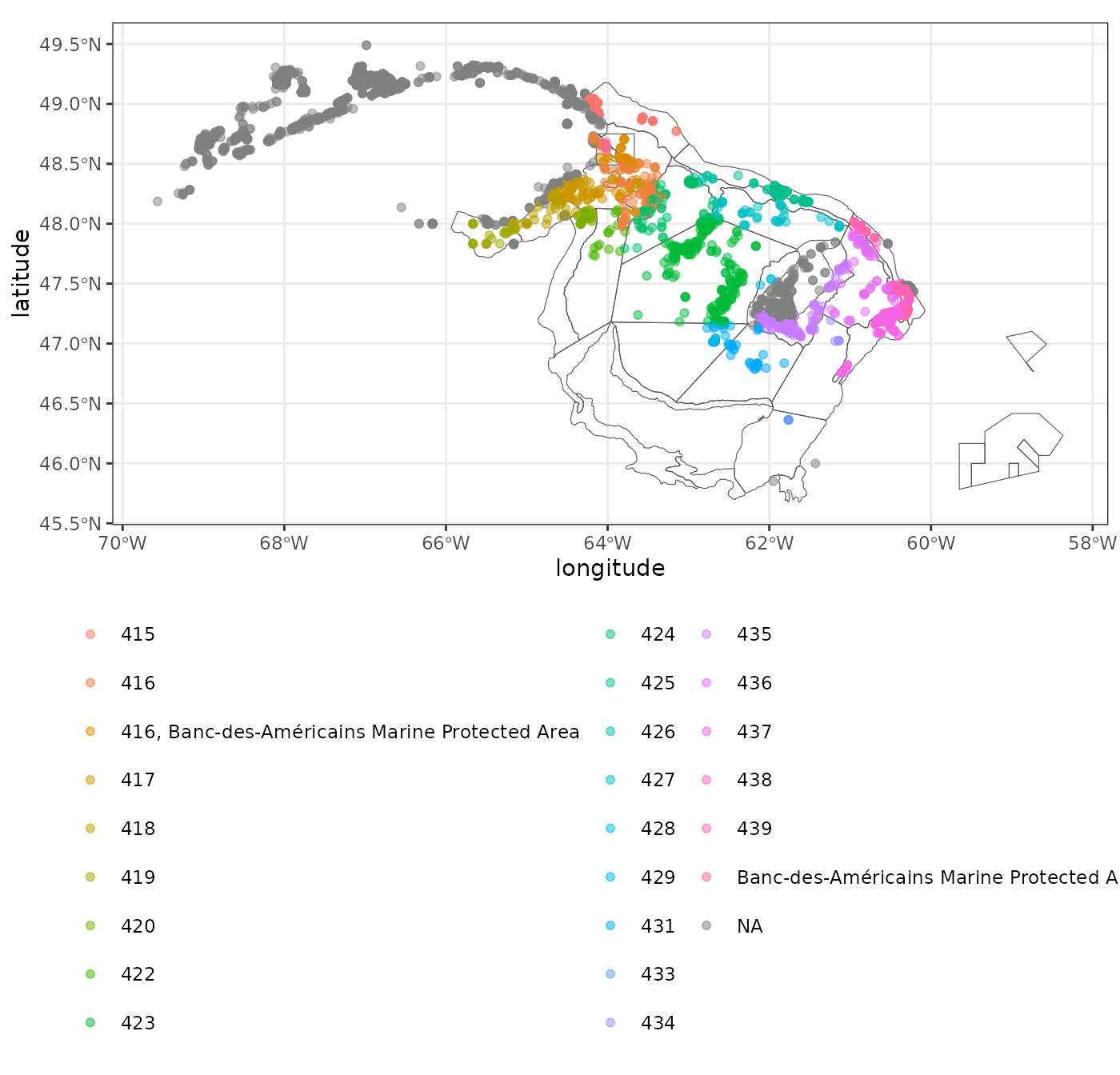

ggplot()+
geom_spatvector(data=shape,fill=NA)+
geom_point(data=df2,aes(longitude,latitude,col=polygon),alpha=0.5)+
theme_bw()+
theme(legend.position="bottom",legend.title=element_blank())+
guides(col=guide_legend(ncol=3))
Assigning points to the nearest polygon
Finally, the previous examples show that a number of data points
don’t overlap with any of the polygons in our shapefiles. But what if we
wanted to find out which polygons they were closest to? Then we could
use function assign_points_to_nearest_polygon. This
function takes a bit longer to run compared to
assign_points_terra or assign_points_secr.
# get the unassigned data points
pts.outside<-df2[which(is.na(df2$polygon)),]
x<-assign_points_to_nearest_polygon(pts.outside$longitude, pts.outside$latitude, shape, 'NAME')
head(x)
#> x y NAME n$distance
#> 1 -60.2833 47.4666 439 1649.2764
#> 2 -60.3000 47.4666 439 944.1621
#> 3 -60.3000 47.4666 439 944.1621
#> 4 -60.2833 47.4833 439 3034.2767
#> 5 -60.3166 47.4833 439 1080.0245
#> 6 -60.2833 47.4833 439 3034.2767

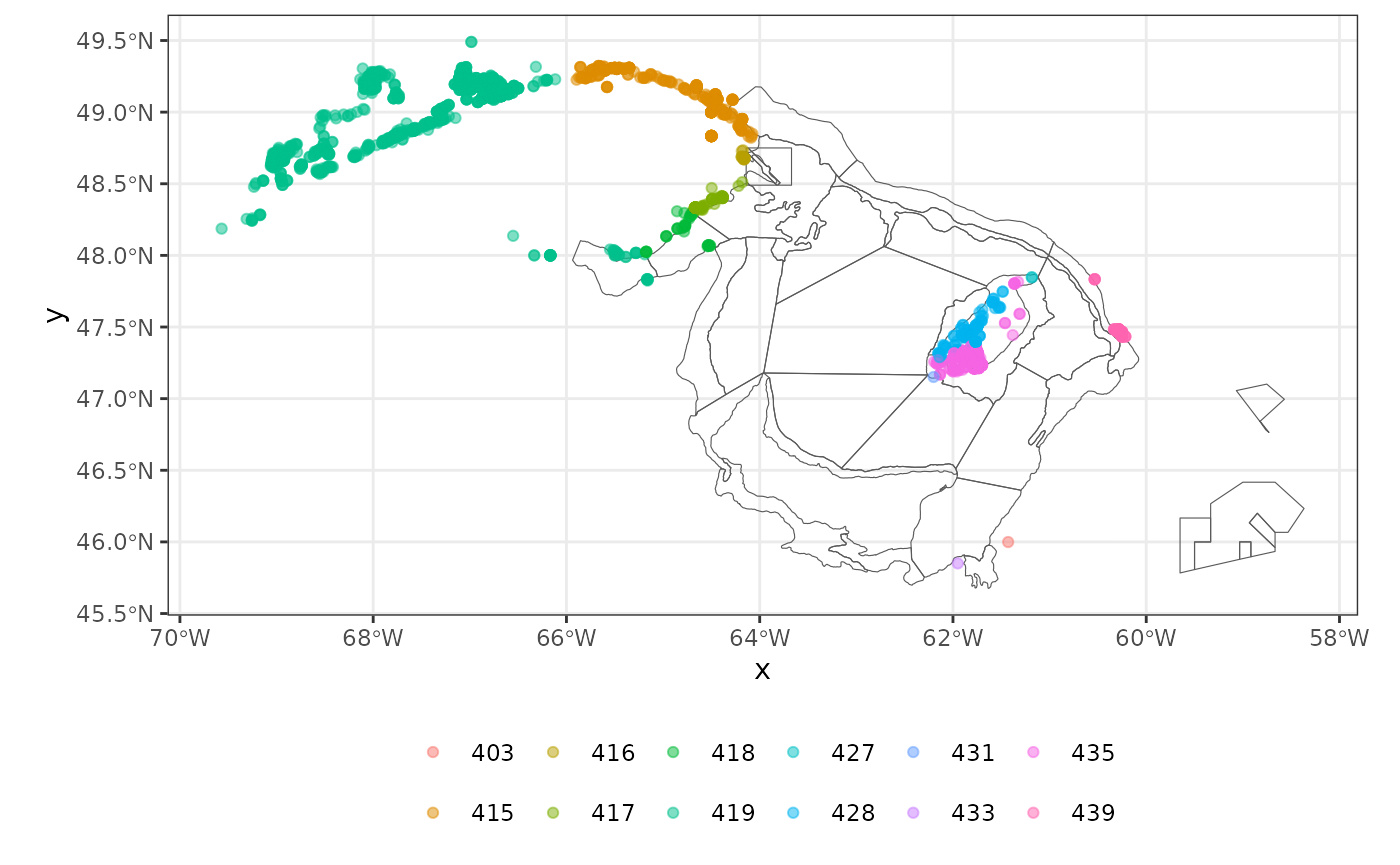

ggplot()+
geom_spatvector(data=shape,fill=NA)+
geom_point(data=x,aes(x,y,col=NAME),alpha=0.5)+
theme_bw()+
theme(legend.position="bottom",legend.title=element_blank())+
guides(col=guide_legend(ncol=6))
